RolaMotive (XL)

Standard curtain according to Code L or XL (DIN EN 12641-2)

The RolaMotive is the Code XL EN 12641 side curtain for load securing purposes, for trailers of all sizes

RolaMotive (XL) according to Code L or XL (DIN EN 12641-2)
RolaMotive (XL) according to Code L or XL (DIN EN 12641-2)
RolaMotive (XL) according to Code L or XL (DIN EN 12641-2)
RolaMotive (XL) according to Code L or XL (DIN EN 12641-2)

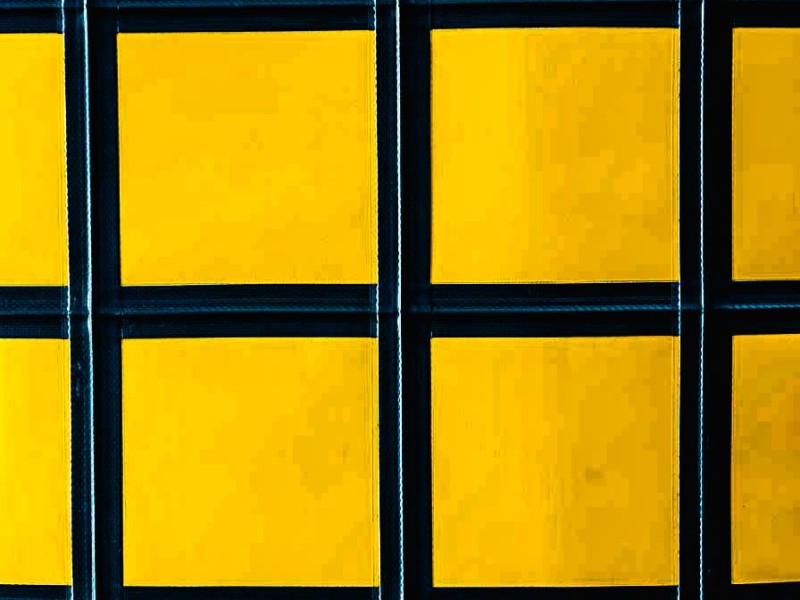

The RolaMotive (XL) is the Code XL EN 12642 side curtain for load securing purposes, for trailers of all sizes. The curtain consists of PVC 900 gr/m2. This model comes as standard with a network of both horizontal (2400 and 1300 daN) and vertical (2400 daN) welded webbing. The full structure of the RolaMotive (XL) is built to provide a solution to our customers who require more safety from their side curtain.

Code L or XL certified

Suitable for load securing purposes

Finishing

Standard equipped with reinforcements and fine finishing

PVC Colors

Available in a wide variety of PVC colors

RolaMotive certified XL (DIN EN 12641-2)

Certified upper structure strength according to Code XL EN 12642

To secure the cargo to be transported on the loading floor without additional load securing measures, the upper structure strength must be increased. For trailers with an upper structure according to Code XL EN 12642, the upper structure can be used for load securing applications - only when the vehicle is loaded form-fitted. The upper structure absorbs the dynamic forces occurring during transport. This means: No additional load securing elements are required for form-fitting cargo.

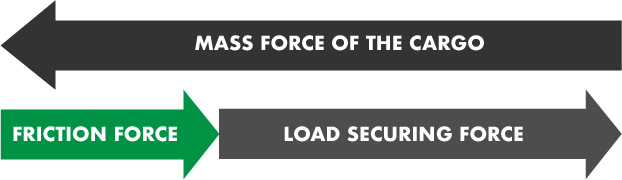

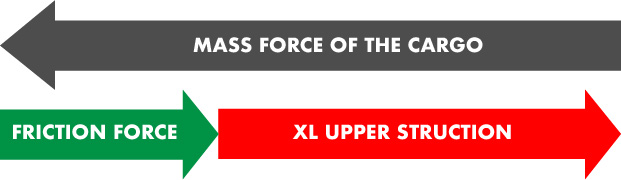

Figure 1: Equivalent to the maximum dynamic forces during transport; if the load is tilt-resistant, the mass force acts opposite to the friction force between cargo and load floor.
Figure 2: With form-fitted loading, no additional load securing measures are required.

It’s all in the details

The finishing of our products is considered to be the best in the industry. All curtains come as standard with finishing:

  • Reflection tape below and corners
  • 3 Pillar reinforcements
  • Top and Bottom Corner Reinforcements
  • Top water barrier
  • Front and Rear keder (high frequency) welded
  • Pallet reinforcement until buckle line

As we’ve been doing so for over 5 decades.

Custom made curtainsider trailer solutions

Custom made solutions

We have been around long enough to fully understand the needs and requirements of the transport industry. Side curtains must withstand rough handling, remain good in all weather conditions and need to be delivered quickly. With our knowledge and our customers input – we are able to design, develop and manufacture the best solution that fits the requirements.

We are helping customers to position the reinforcements (if required), how can we improve the usability of the side curtain and how can we prevent thieves to enter your trailer? In our extensive database we store all side curtain details – which makes a replacement after several years a simple exercise.

Whether you need a one-off side curtain or a full replacement of your fleet. We provide a one-stop service to our customers.

InfiniShield printing technologies

Innovative production technologies

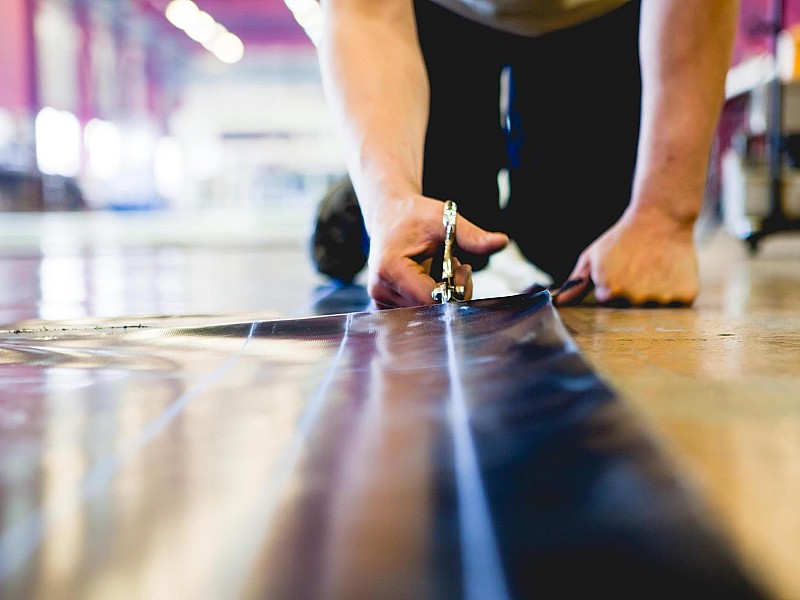

In our Centre of Excellence in Kuny we house an expansive range of highly efficient welding equipment and high-tech printing technologies (including state-of-the-art digital UV printers). Our production processes have been optimized and mostly automated for a higher quality output for both standard as technical side curtains.

The facility also has in-house testing facilities for new products, materials, and components, ensuring all new developments comply with required regulations before releasing to the market.

Full suite of side curtains and options

Products according to EN 12641-2 and Daimler

At Roland, we take pride in delivering high-quality and compliant solutions for your transportation needs. We provide our customers a full suite of side curtains and solutions for specific types of transport. Using only the highest quality of materials. Offering a wide range of rollers, buckles and PVC colors. Or additional features such as document pockets, handgrips or anti-theft.

Our side curtains are designed and manufactured to meet the stringent standards set by EN 12641-2 and Daimler. This norm specifies the minimum requirements for the strength and attachment of tarpaulins used as curtainsiders on intermodal loading units and commercial vehicles. By choosing Roland side curtains, you are ensuring that your transportation operations align with industry standards, providing not only convenience but also a commitment to safety and reliability.

Contact our side curtain specialists, they will help you to decide what side curtain fits best to your application.

Download certificate

InfiniShield

InfiniShield signwriting

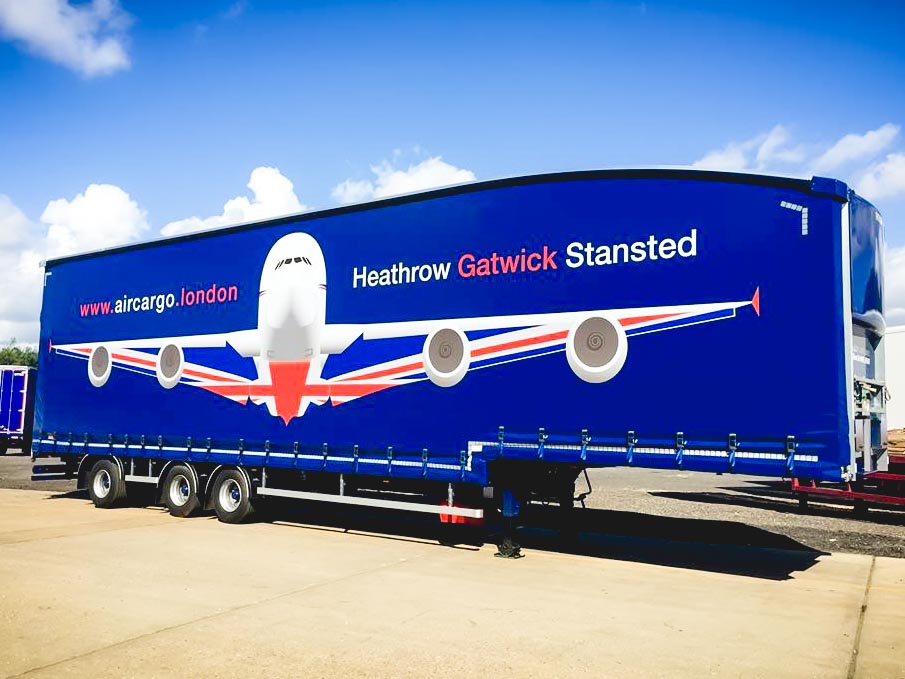

InfiniShield is a Roland brand that brings together a full range of digital UV and Solvent printing technologies on PVC, with multiple protective coatings to provide the perfect printed side curtain solution for every trailer.

Combined with our thorough understanding of color, composition, typography and design principles we create breathtaking full color prints. Together with the coatings, these curtains are dirt-repellent, easy to clean and up to 5 years warranty.

More about InfiniShield

Care & Maintenance

Care & Maintenance

It may happen that due to theft, storm or an accident your tarpaulin is damaged. Roland will help you quickly repair small damages. With our strong network in the region, we are able to help our customers out when needed. We strongly advice to not wait with any damages occurred to prevent it from ripping out.

To keep you side curtain in its best condition, curtainsider trailers should be cleaned using hot soapy water preferably with a hose and soft brush. The use of a high pressure water is NOT recommended as this can affect the lacquer coating on the PVC exposing the pores to the elements. This is especially important if you have invested in having your curtain sign written and clear coated.

LoadLok Load Securing for Roland semi-trailers

Load securing

LoadLok is also member of the Cargo Control Company (C3). LoadLok is the number 1 provider of smart cargo control solutions to the European transport industry. Therefor we are able to provide our customers the full range of load securing equipment for side curtain trailers. We join forces to create innovative solutions for specific challenges you may face.

We are more than happy to supply replacement equipment such as: cargo nets, cargo planks, lashing straps and 5110 rail.

Visit LoadLok.com

Upgrade your RolaMotive (XL)

Add one of these options to your side curtain

InfiniShield

The ultimate printed curtain

Add signwriting to your side curtain to give it an unique appearance

Discover more

Anti-Theft

Measures to prevent loss of cargo

Add anti-theft measures to your curtain for optimal protection

Discover more

Product Specifications

Discover all product specifications of RolaMotive:

MaterialPVC 900 gr/m2 Panama
BucklesStandard Locking buckles (Stainless Steel)
Buckles mountingScrewed
Optional: huck bolted
HooksStandard Flat Hook (Zinc Plated)
Optional: Customer choice
RollersDepending on roof track
Rollers mountingStitched
Optional: Screwed / huck bolted
Vertical Webbing2400 daN welded
Horizontal WebbingWebbing buckle line 2400 daN,
above multiple 1300 daN webbing (=<600mm distance)
Reflection tapeBelow and corners
Optional: Customer choice
Pillar reinforcement3 pillar reinforcements
Corner ReinforcementsTop and Bottom
Water barrierOn top
Optional: Bottom
Front and RearKeder (high frequency welded)
Optional: open hem
Pallet reinforcementUntil buckle line
